Outdoor LED Displays

High Brightness. Built for All-Weather Visibility.

Specktron outdoor LED displays are engineered for sunlight-readable advertising, public information, and large-format installations, with high-brightness output and IP-rated weatherproof cabinets for stable operation year-round.

● Brightness options from 5,000 to 10,000 nits
● IP66 ingress protection with 5VB flammability rating
● Precision aluminium cabinet construction
● Front and rear service access
● Energy-saving configurations available

Download Brochure

Product Enquiry

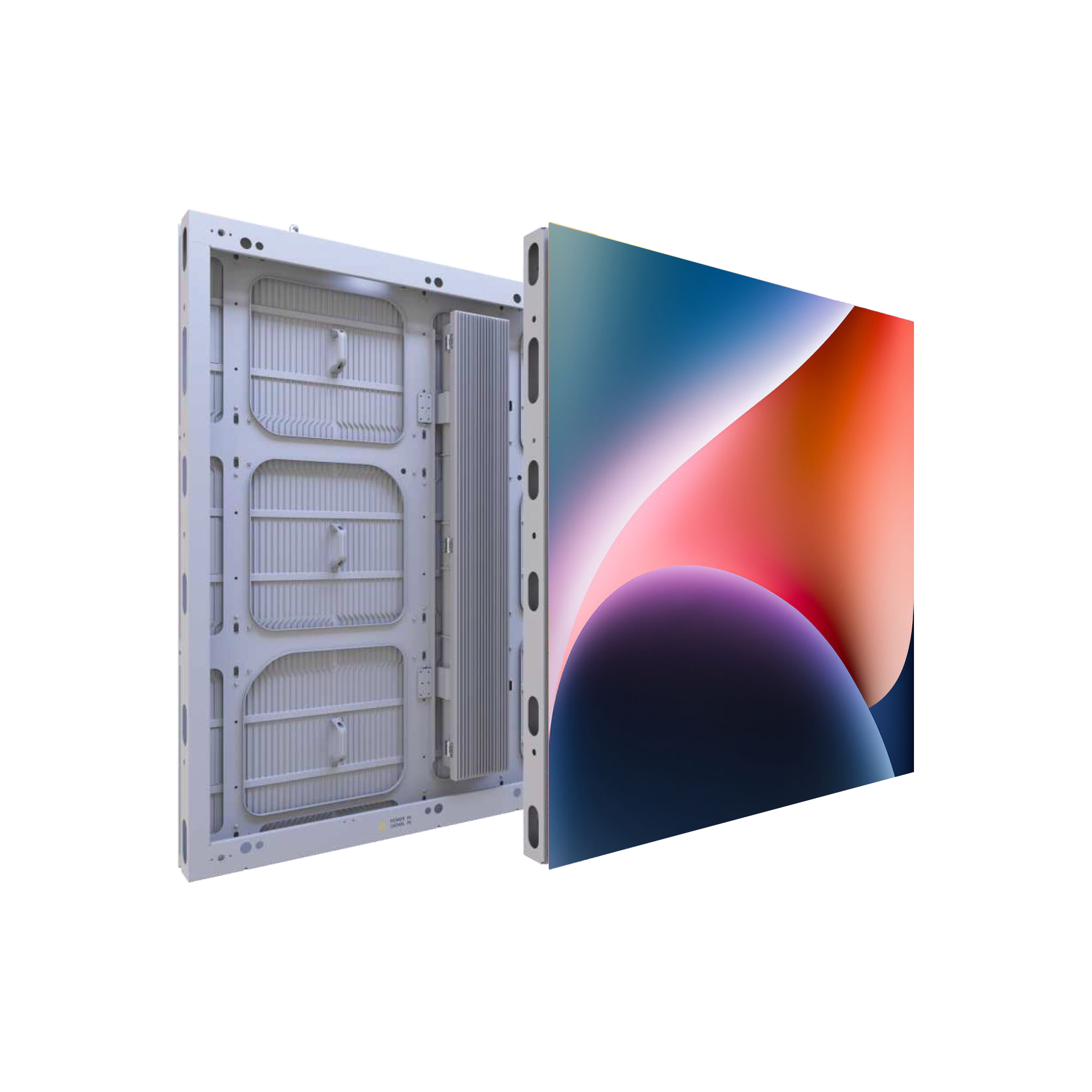

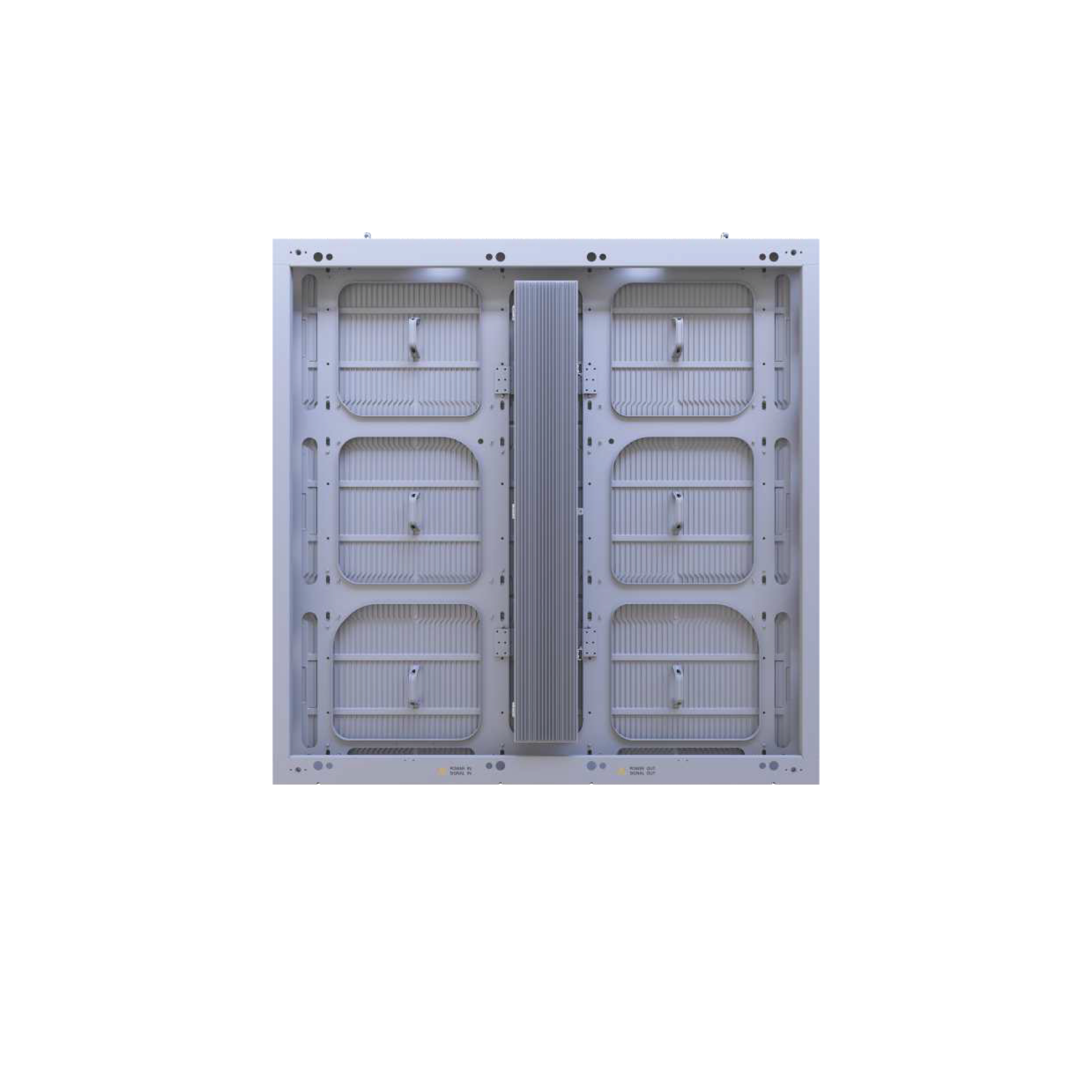

Precision Aluminium Construction

Engineered aluminium cabinets provide accurate alignment, efficient heat dissipation, structural stability, and easier handlin

Outdoor-Grade Protection

Selected configurations offer IP66 ingress protection and a 5VB flammability rating for demanding outdoor environments.

High-Visibility Brightness

Brightness options from approximately 5,000 to 10,000 nits maintain clear, vivid content in strong daylight.

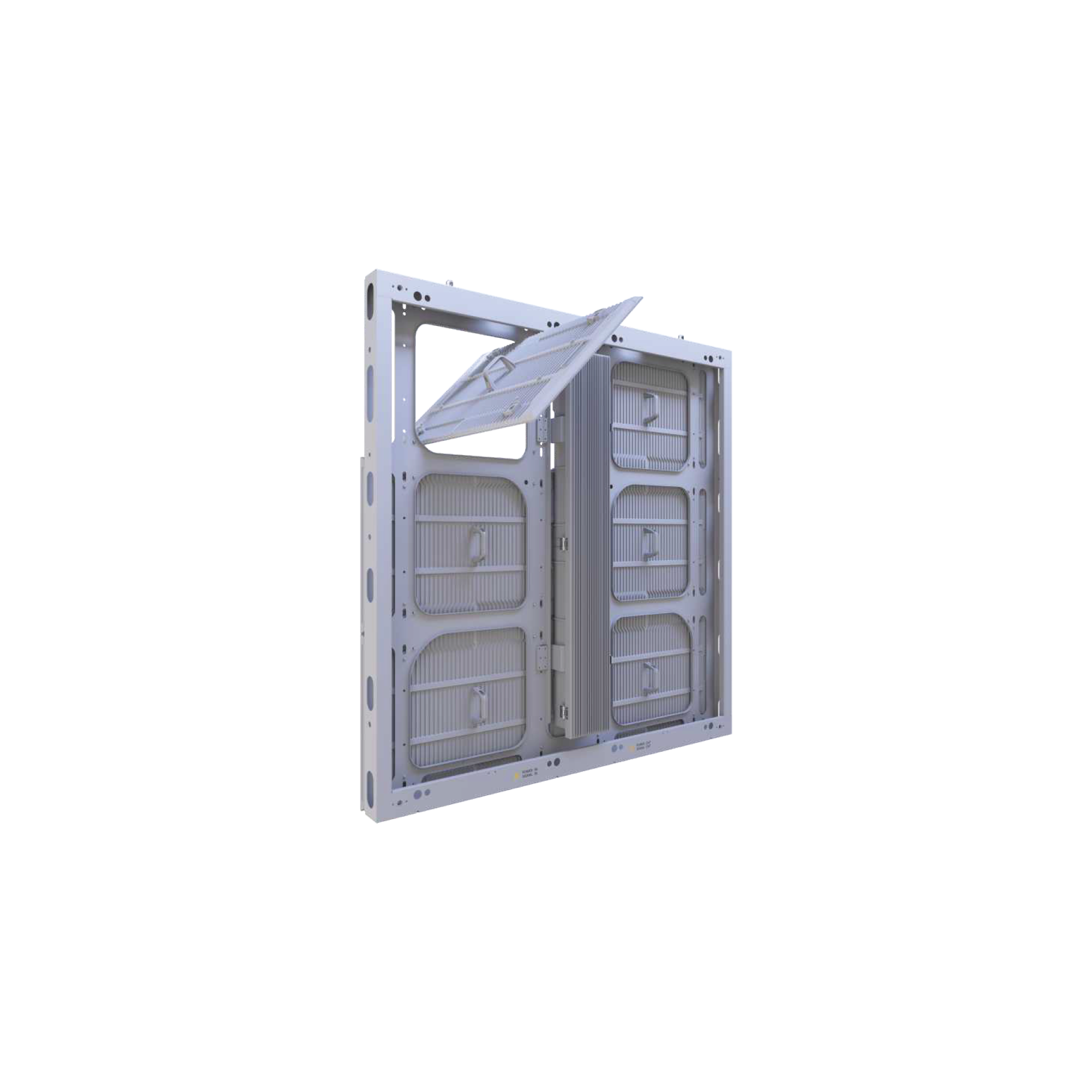

Flexible Service Access

Front and rear maintenance options provide efficient access to LED modules, power supplies, and control components.

Optimised Thermal Management

Advanced aluminium heat-dissipation structures and optional fanless cooling support stable, low-noise performance.

Energy-Efficient Operation

Selected energy-saving configurations can reduce power consumption by up to 50% versus conventional designs.

High Refresh Rate

Delivers flicker-free visuals even in direct sunlight, ensuring smooth playback for advertising and information content.

All-Weather Reliability

Built to withstand rain, dust, heat, and humidity for stable year-round outdoor performance.

Large-Format Ready

Suited for high-impact advertising, public information, and large-scale outdoor installations.

Available Pixel Pitches	3.9 / 4.4 / 5.71 / 6.67 / 8 / 10 mm
LED Technology	Outdoor SMD LED, configuration dependent
Pixel Density	Approximately 10,000–65,700 pixels/m², depending on pixel pitch
Brightness	Approximately 5,000–10,000 nits, model dependent
Refresh Rate	≥3,840 Hz; higher-refresh configurations available
Grey Scale	Up to 14–16 bit, depending on driver and control configuration
Viewing Angle	Wide horizontal and vertical viewing angles; model dependent
Cabinet Material	Precision-engineered aluminium
Cabinet Size	Multiple modular cabinet formats available; project dependent
Ingress Protection	Up to IP66 on selected outdoor configurations
Flammability Rating	5VB on selected configurations
Maintenance Access	Front, rear, or front-and-rear service options
Cooling System	Optimised aluminium heat dissipation; optional fanless design
Power Consumption	Varies by brightness, pixel pitch, cabinet design, and energy-saving configuration
Energy-Saving Option	Selected configurations can reduce power consumption by up to 50%
Input Power	AC 100–240 V, 50/60 Hz, configuration dependent
Operating Temperature	Typical outdoor operating range: approximately -20°C to +50°C
Operating Humidity	Typical range: 10%–90% RH, non-condensing
Installation Options	Fixed mounting, hanging, stacking, curved layouts, and corner configurations
Control-System Compatibility	Compatible with leading synchronous and asynchronous LED control platforms, subject to system configuration
Expected LED Lifetime	Up to 100,000 hours under recommended operating conditions
