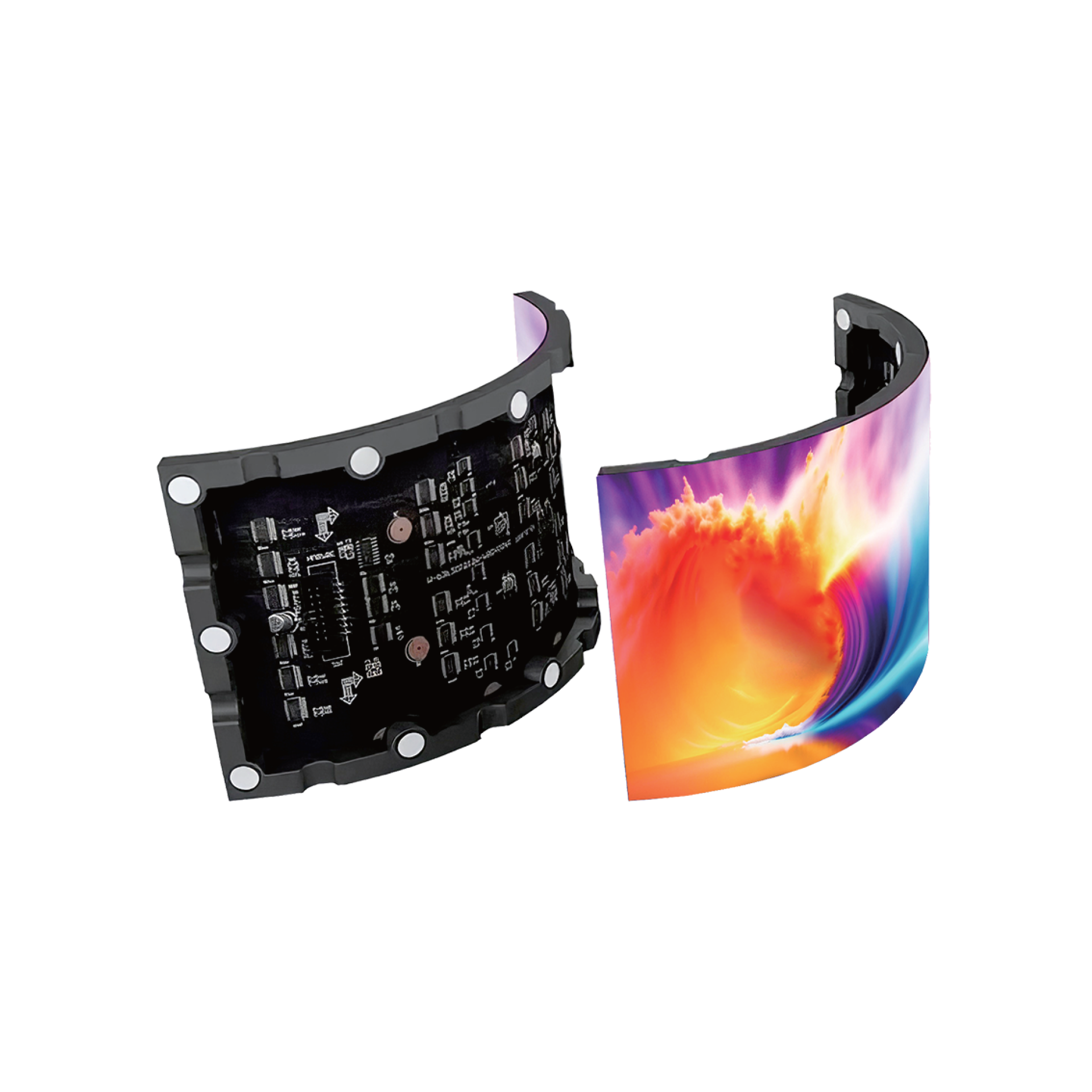

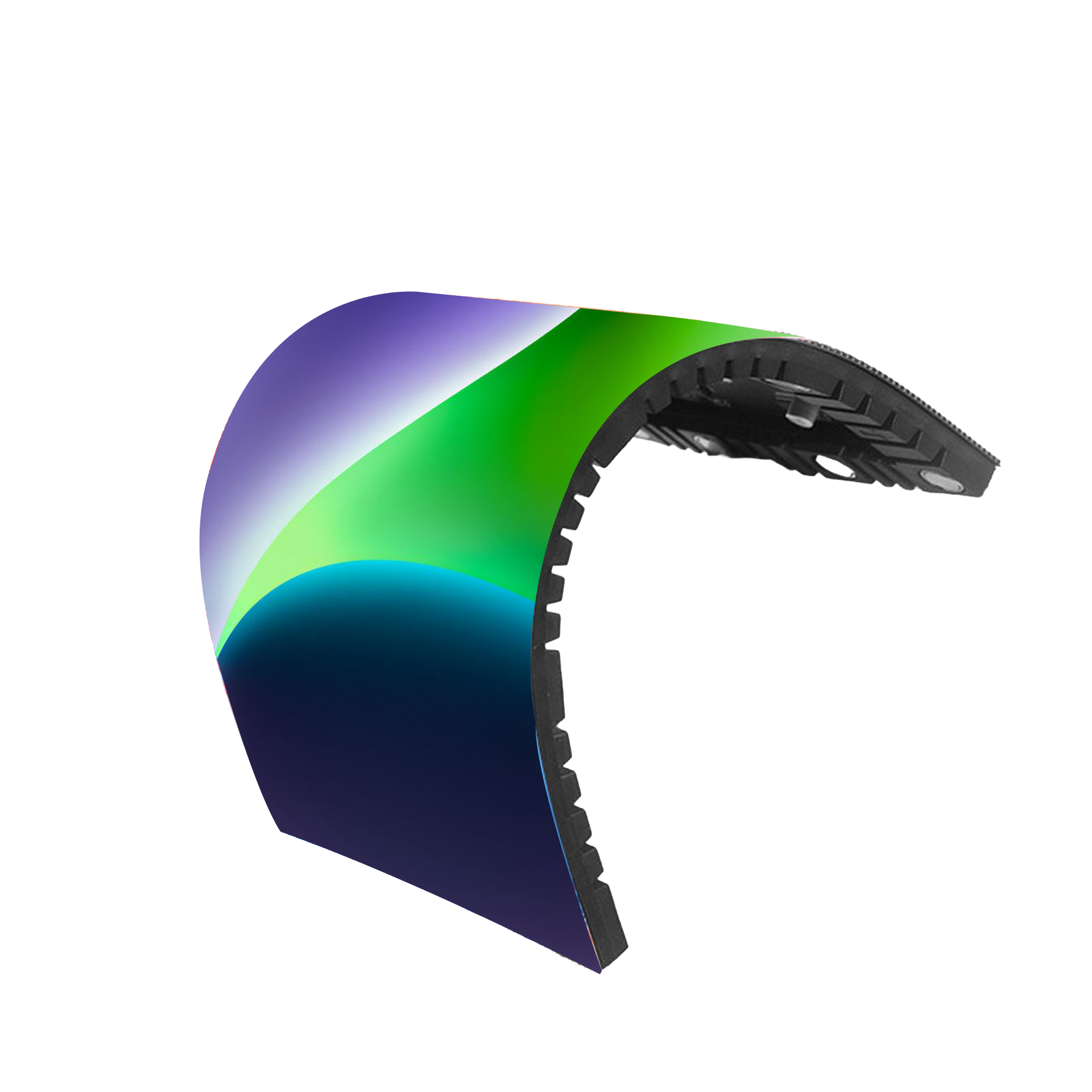

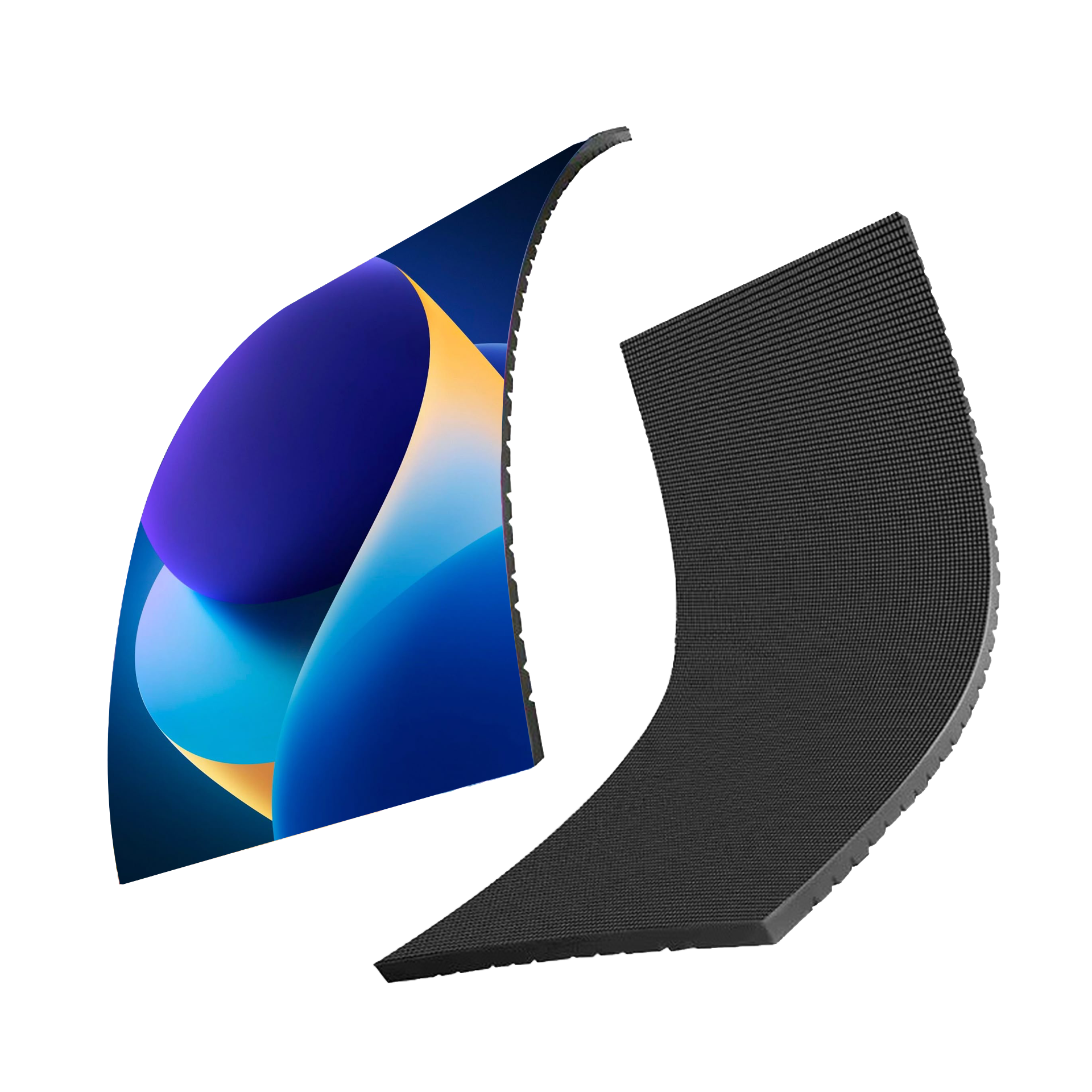

Specktron Flexible LED displays use soft PCB modules that bend, curve, and wrap around non-flat surfaces — pillars, arches, concave walls, cylindrical structures, and custom architectural shapes. High refresh rates and deep colour depth deliver smooth, vivid visuals on surfaces that rigid cabinets simply cannot reach.
Available as soft LED modules for custom structures or purpose-engineered fixed cabinets for curved, cylindrical, and defined-radius installations.
Supports concave, convex, cylindrical, wave, and other creative forms within the specified module or cabinet curvature range.
Lightweight modules and cabinet structures simplify handling and help reduce structural load.
Precision alignment creates smooth, continuous imagery across curved and irregular display surfaces.
Magnetic module mounting and engineered cabinet systems support efficient installation, front access, and component replacement, depending on the selected design.
Selected configurations deliver high-refresh output, consistent colour reproduction, and stable on-camera performance.
| LED Type | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD2121 | SMD2121 | SMD2121 |
| Pixel Pitch | 1.25 mm | 1.53 mm | 1.86 mm | 2.00 mm | 2.50 mm | 3.07 mm | 4.00 mm |
| Pixel Density | 640,000 dots/m² | 422,500 dots/m² | 288,900 dots/m² | 250,000 dots/m² | 160,000 dots/m² | 105,625 dots/m² | 62,500 dots/m² |
| Module Dimensions (W×H×D) | 320 × 160 × 8.5 mm |
| Module Resolution | 256 × 128 px | 204 × 104 px | 172 × 86 px | 160 × 80 px | 128 × 64 px | 104 × 52 px | 80 × 40 px |
| Module Weight | 0.27 kg |
| Cabinet Dimensions (W×H×D) | 640 × 480 × 70 mm |
| Cabinet Resolution | 512 × 384 px | 416 × 312 px | 344 × 258 px | 320 × 240 px | 256 × 192 px | 208 × 156 px | 160 × 120 px |
| Cabinet Weight | 7.5 kg |
| Panel Material | Die-cast Aluminium |
| Refresh Rate | ≥ 3840 Hz |
| Brightness | 800 cd/m² |
| Colour Grayscale | 14-bit |
| Colour Temperature | 3000–15000 K |
| Viewing Angle (H/V) | 160° / 140° |
| Optimum Viewing Distance | ≥ 1.8 m | ≥ 2.3 m | ≥ 2.8 m | ≥ 3.0 m | ≥ 3.8 m | ≥ 4.6 m | ≥ 6.0 m |
| Contrast Ratio | 5000:1 |
| Scan Mode | 1/64 scan | 1/52 scan | 1/43 scan | 1/40 scan | 1/32 scan | 1/26 scan | 1/20 scan |
| IP Rating | IP30 |
| Maximum Input Power | 550 W/m² |
| Average Input Power | 275 W/m² |
| Input Voltage | AC 100–240 V, 50/60 Hz |
| Operating Temperature | -10°C to 40°C |
| Operating Humidity | 10%–70% RH |
| Storage Temperature | -25°C to 50°C |
| Storage Humidity | 10%–65% RH |
| Maintenance | Front |
| Typical Lifetime | 100,000 hours |
