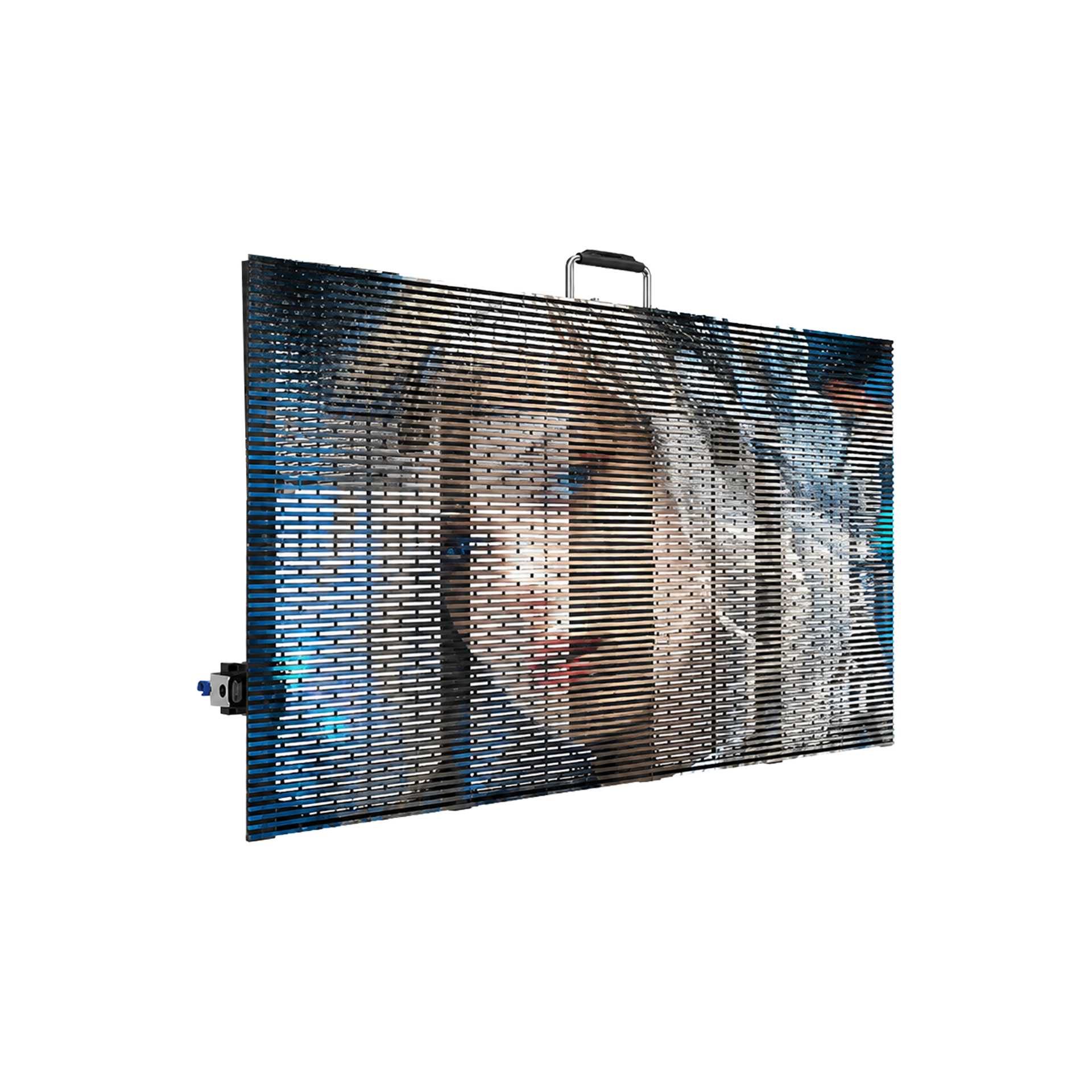

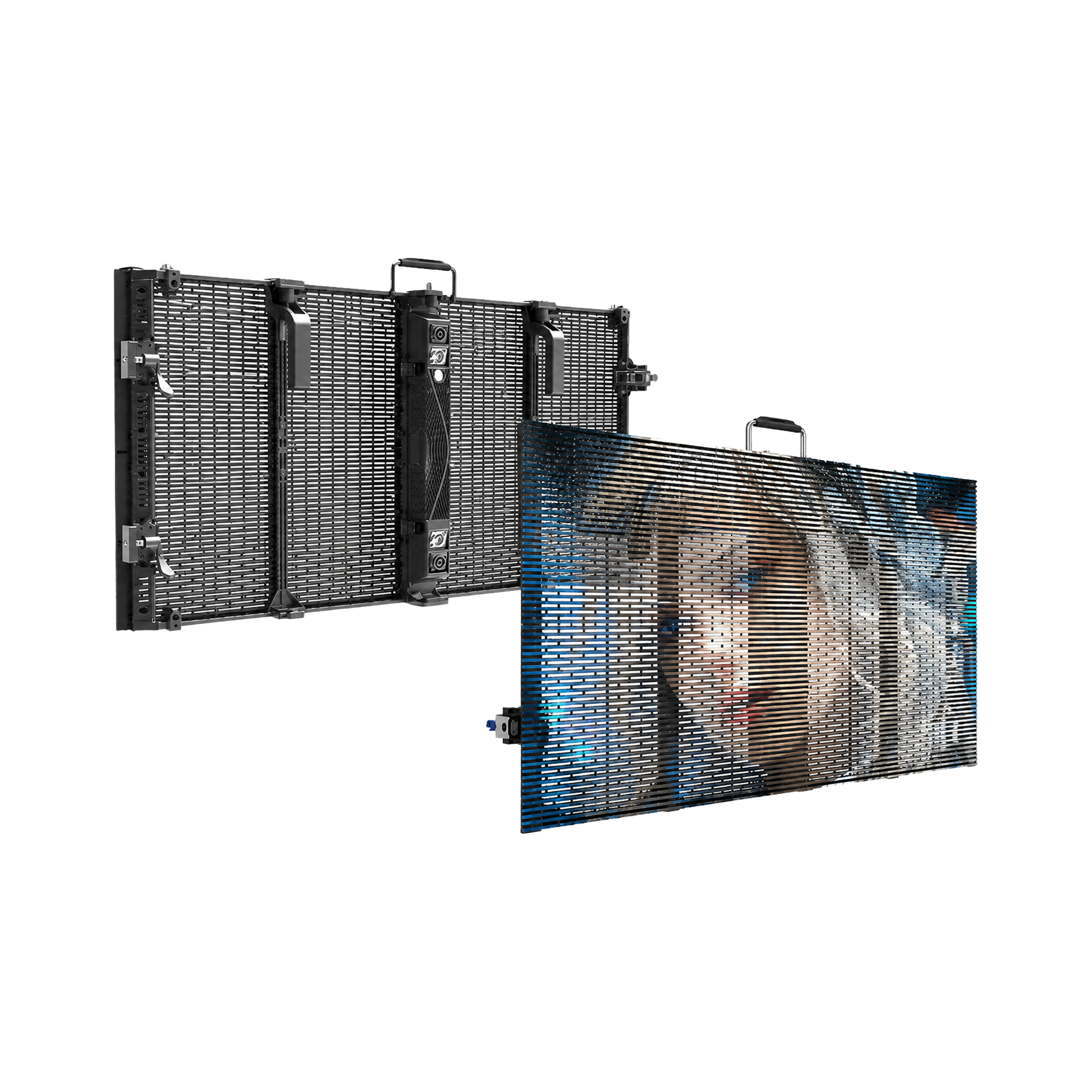

Specktron Transparent LED displays deliver vivid digital content while preserving visibility through the screen. Their refined cabinet design supports professional indoor and outdoor installations without obstructing natural light or architectural sightlines.
Suitable for indoor venues, outdoor events, exhibitions, stages, and commercial display environments.
Preserves visibility through the display while maintaining smooth, stable image performance.

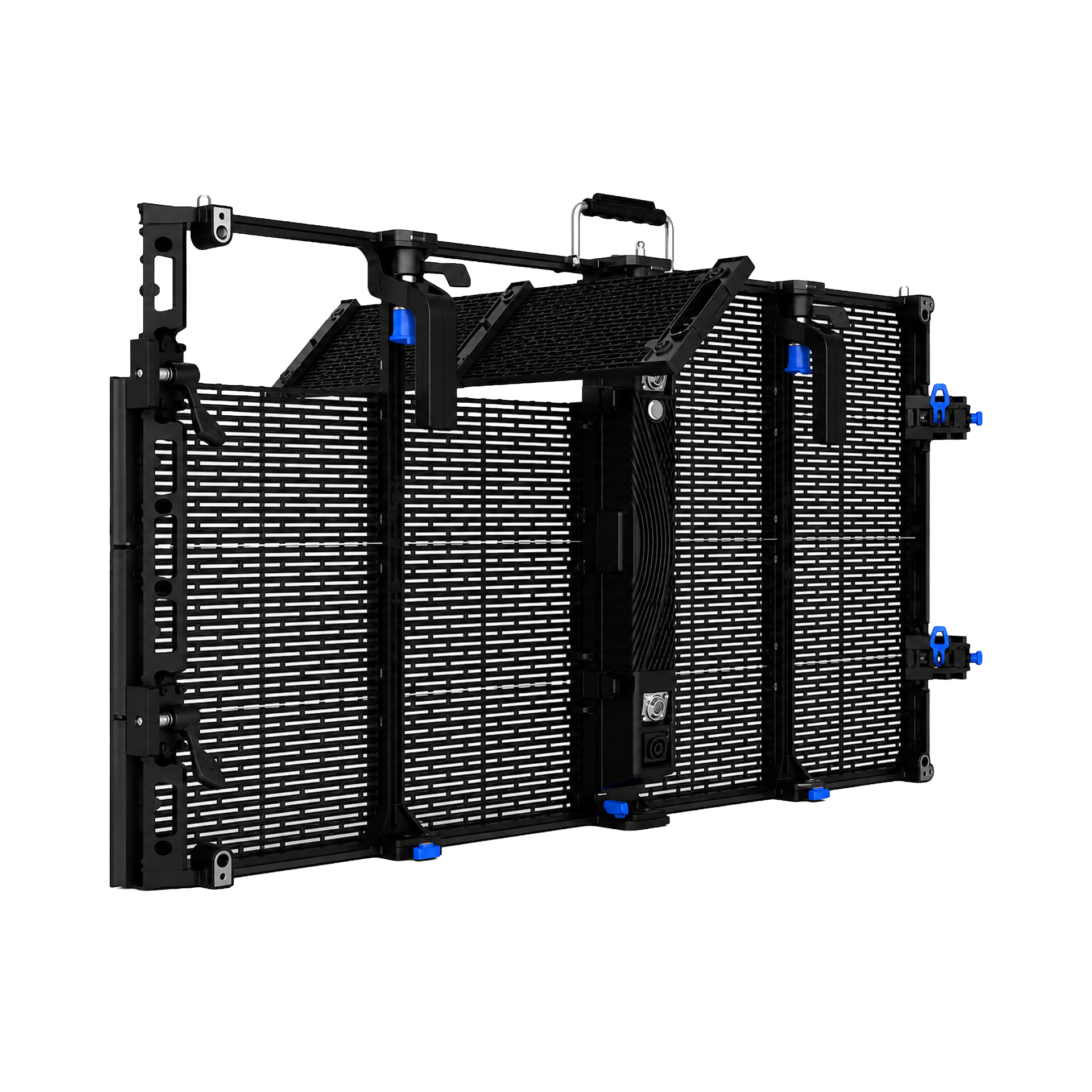

A weather-resistant die-cast aluminium cabinet supports dependable operation in demanding environments.
Designed for easier transportation, handling, installation, and dismantling.
Quick-lock connections support rapid setup, single-person installation, and efficient maintenance.
Supports secure hanging and stacking installation for diverse application requirements.
| Pixel Pitch | H 3.9 / V 7.8 mm | H 7.8 / V 7.8 mm |
| LED Type | SMD1516, 3-in-1 |
| Module Size | 500 × 250 mm |
| Module Resolution | 128 × 32 px | 64 × 32 px |
| Cabinet Size | 1000 × 500 mm |
| Cabinet Weight | 7.5 kg |
| Cabinet Area | 0.5 m² |
| Pixel Density | 32,768 dots/m² | 16,384 dots/m² |
| Screen Configuration | Flat |
| Brightness | 4,000–4,200 cd/m² |
| Refresh Rate | 1,920–7,680 Hz |
| Grey Scale | 14–16 bit |
| Viewing Angle | H 160° / V 140° |
| Scanning Method | 1/8 Scan |
| Control System | NovaStar |
| Working Voltage | AC 200–240 V, 50/60 Hz |
| Power Consumption | 200 W/m² average / 500 W/m² maximum |
| Operating Temperature | -20 °C to +50 °C |
| Operating Humidity | 10%–90% RH, non-condensing |
| IP Grade | IP65 |
| Expected Life Span | >80,000 hours |
