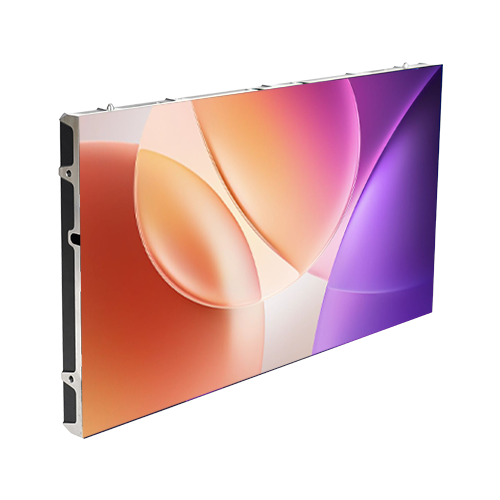

Indoor COB Flip-Chip LED Displays

Next-Generation Fine-Pitch Visuals

Indoor Chip-on-Board Flip-Chip LED technology delivers exceptional contrast, enhanced durability, and seamless visual performance, ranging from ultra-fine P0.6 to versatile P2.5 pixel pitches for high-end, close-up viewing environments.

● Pixel pitches from P0.6 to P2.5
● Sealed resin surface, impact and moisture resistant
● Ink-black contrast with minimal glare
● 160° horizontal and vertical viewing angle
● Fewer solder joints, lower dead-pixel rates
● Low blue light, camera-friendly display

Download Brochure

Product Enquiry

Impact & Moisture Resistant

LED chips are sealed under a smooth resin surface with no exposed solder joints, resistant to dust, humidity, and oxidation.

Ink-Black Contrast

Resin fills the gaps between chips, eliminating the reflective grid for a true black background and higher contrast.

160° Viewing Angle

Uniform colour and brightness across a 160° viewing angle, with no colour shift or washout.

Ultra-Fine Pixel Pitch

Tighter chip packing enables pixel pitches from P0.6 to P1.56, ideal for control rooms and boardrooms.

Fewer Failure Points

Reduced solder joints mean lower dead-pixel rates and strong resistance to humidity-driven corrosion.

Low Blue Light & Camera-Friendly

A matte, diffused surface reduces blue light and avoids moiré patterns when filmed or photographed.

Seamless Visual Performance

No visible grid lines between chips, delivering a smooth, continuous image surface.

Enhanced Durability

Built to withstand the demands of high-end, close-up viewing environments.

Precision Image Clarity

Engineered for environments where fine detail and colour accuracy are critical, such as control rooms and boardrooms.

Product Technology	COB Flip-Chip LED
Pixel Pitch	0.625 / 0.78 / 0.9375 / 1.25 / 1.56 / 1.875 / 2.5 mm
Module Size	150 × 168.75 mm
Cabinet Size	602 × 337.5 mm / 600 × 675 mm
Cabinet Aspect Ratio	16:9 / 8:9
Cabinet Depth	≤ 40 mm
Cabinet Weight	≤ 4.6 kg
Cabinet Material	Aluminium
Modules per Cabinet	8 / 16 modules
Surface Finish	Matte
Refresh Rate	3840 Hz; 7680 Hz available on select models
Brightness	550–1,000 nits
Viewing Angle (H/V)	≥ 160° / ≥ 160°
Contrast Ratio	≥ 10,000:1 (typ.); 5,000:1 @ 10 lx
Maximum Power	≤ 610 W/m²
Front / Rear Protection	Front IP54–IP65; rear IP31 (model dependent)
Input Voltage	AC 100–230 V, 60 Hz
Operating Temperature	–10°C to +40°C
Storage Temperature	–20°C to +60°C
Operating Humidity	10%–90% RH
Lifespan	100,000 hours
Control System	Nova
